Floating Tiny House Plan – Sleeping Loft | 14′ x 28′ (392 sq ft)
This modern floating tiny house is a carefully designed architect-led waterfront home, created for calm living on the water. Minimal, warm, and timeless — this design prioritizes spatial clarity, natural light, and honest materials, making it ideal for marinas, rivers, and floating communities. Designed as a permanent floating residence, the project is HOA-conscious, modest in scale, and refined in detail.
🏠 | Livingroom: 1
🍴 | Kitchen: 1
🛏️ | Bedroom: 2
🛁 | Bathroom: 1
⚒️ | Technical Room: 1
📐 | Ground Floor Area: 392 sq ft
📐 | Total Area: 546 sq ft
📏 | Dimensions: 14′ x 28′
📄 | File: High-resolution PDF
📥 | Delivery: Instant digital download (no physical item)
📐 WHAT’S INCLUDED
After purchase, you will receive one complete PDF package including:

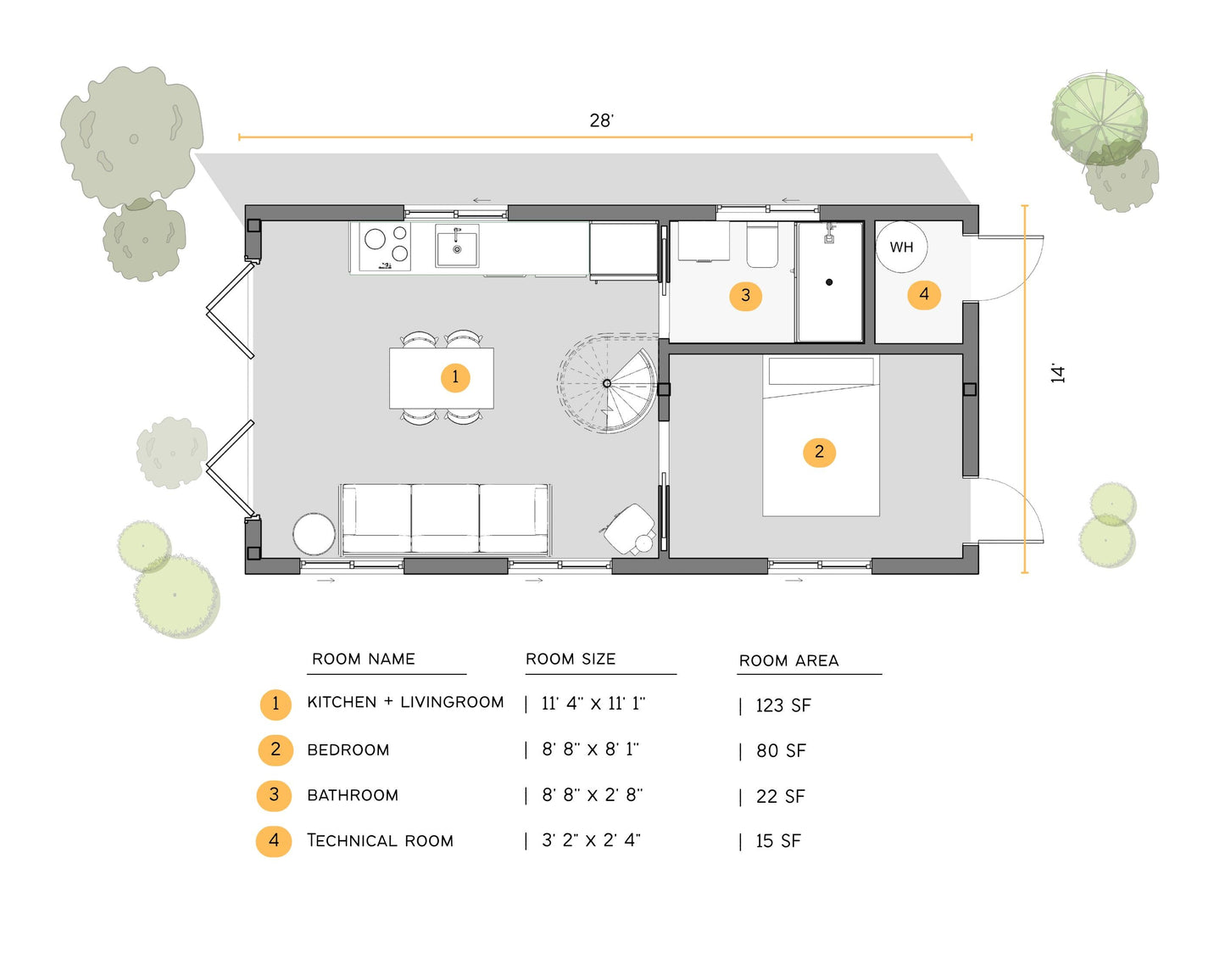

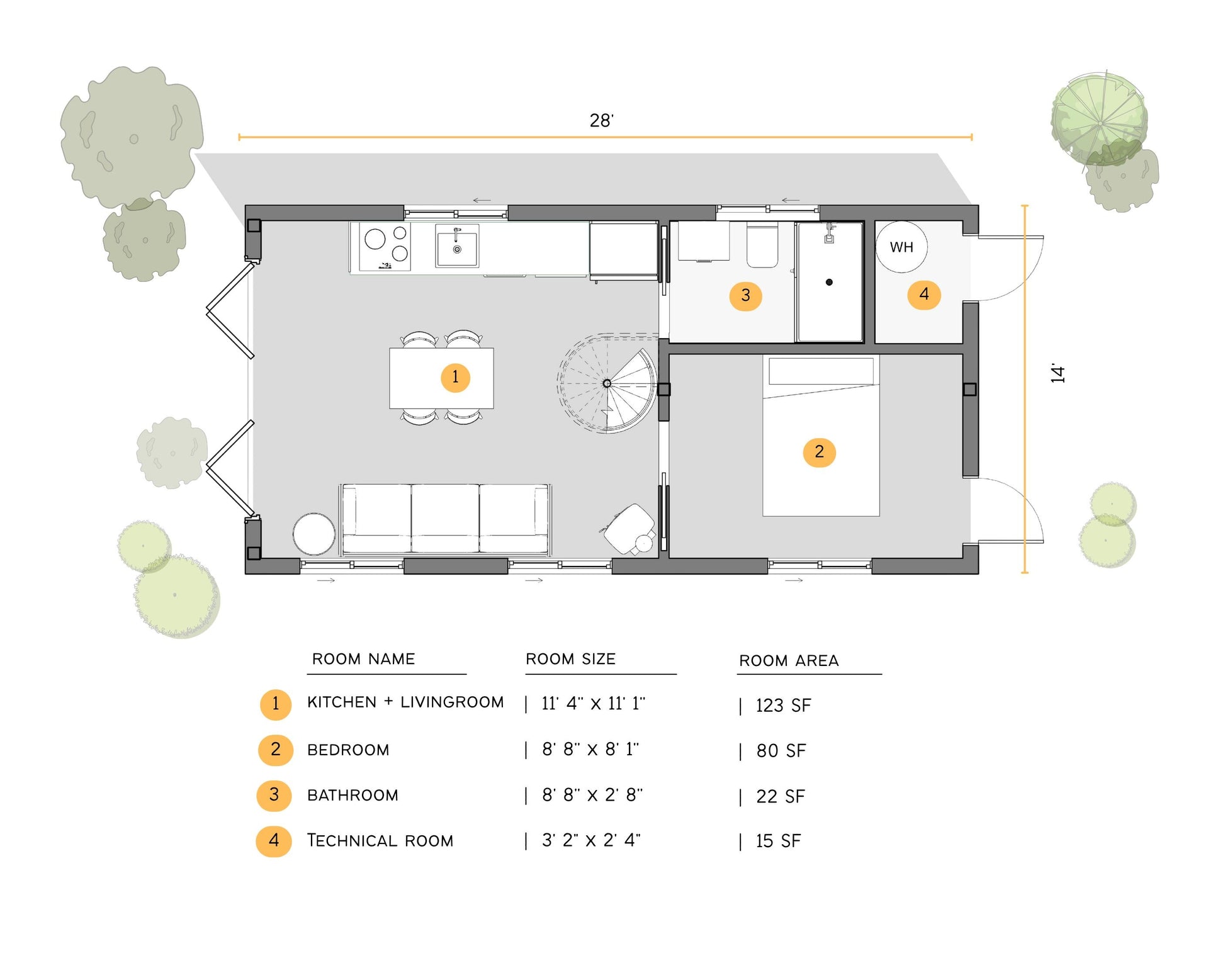

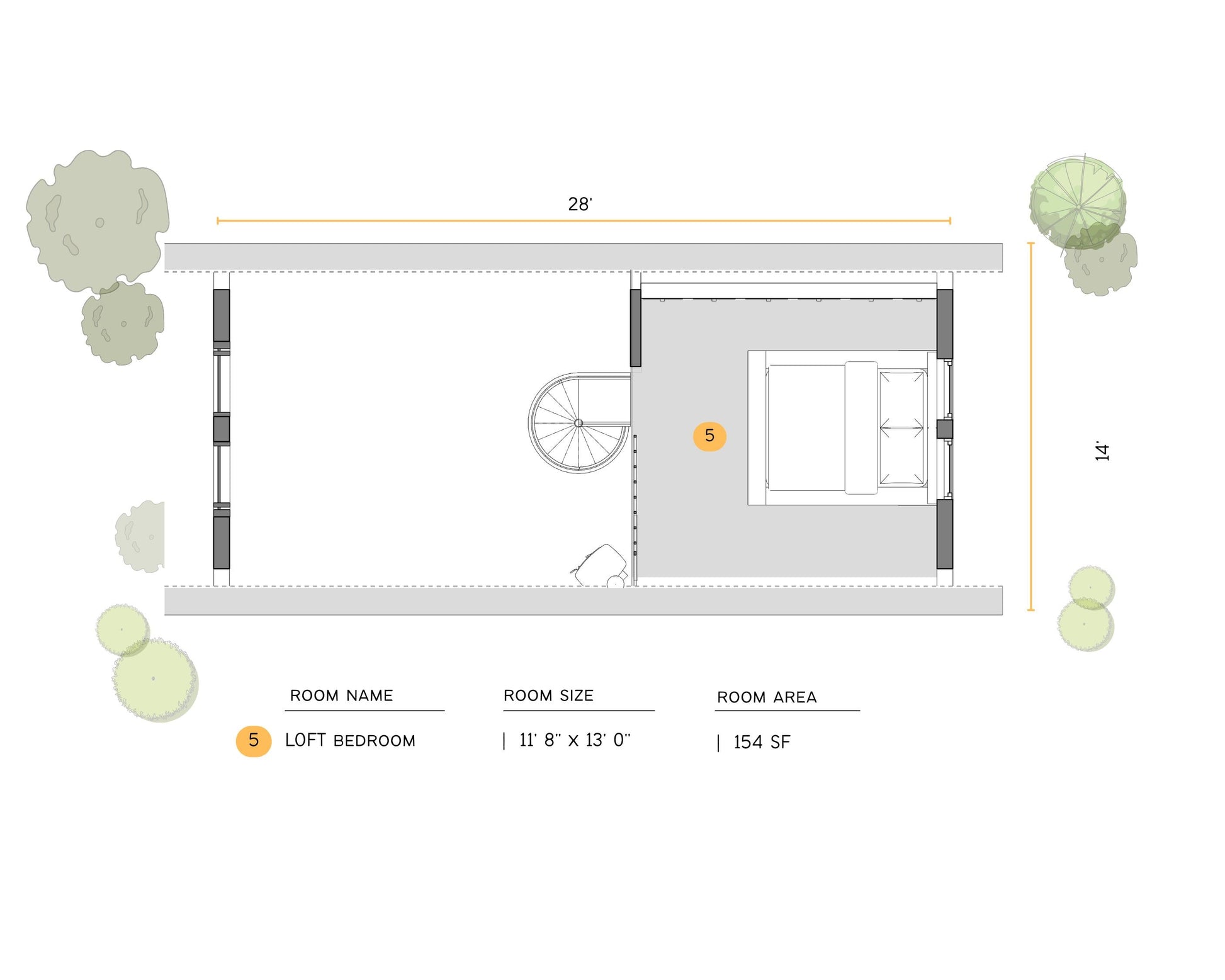

✔ Dimensioned architectural floor plans
✔ Roof, and structural layout drawings

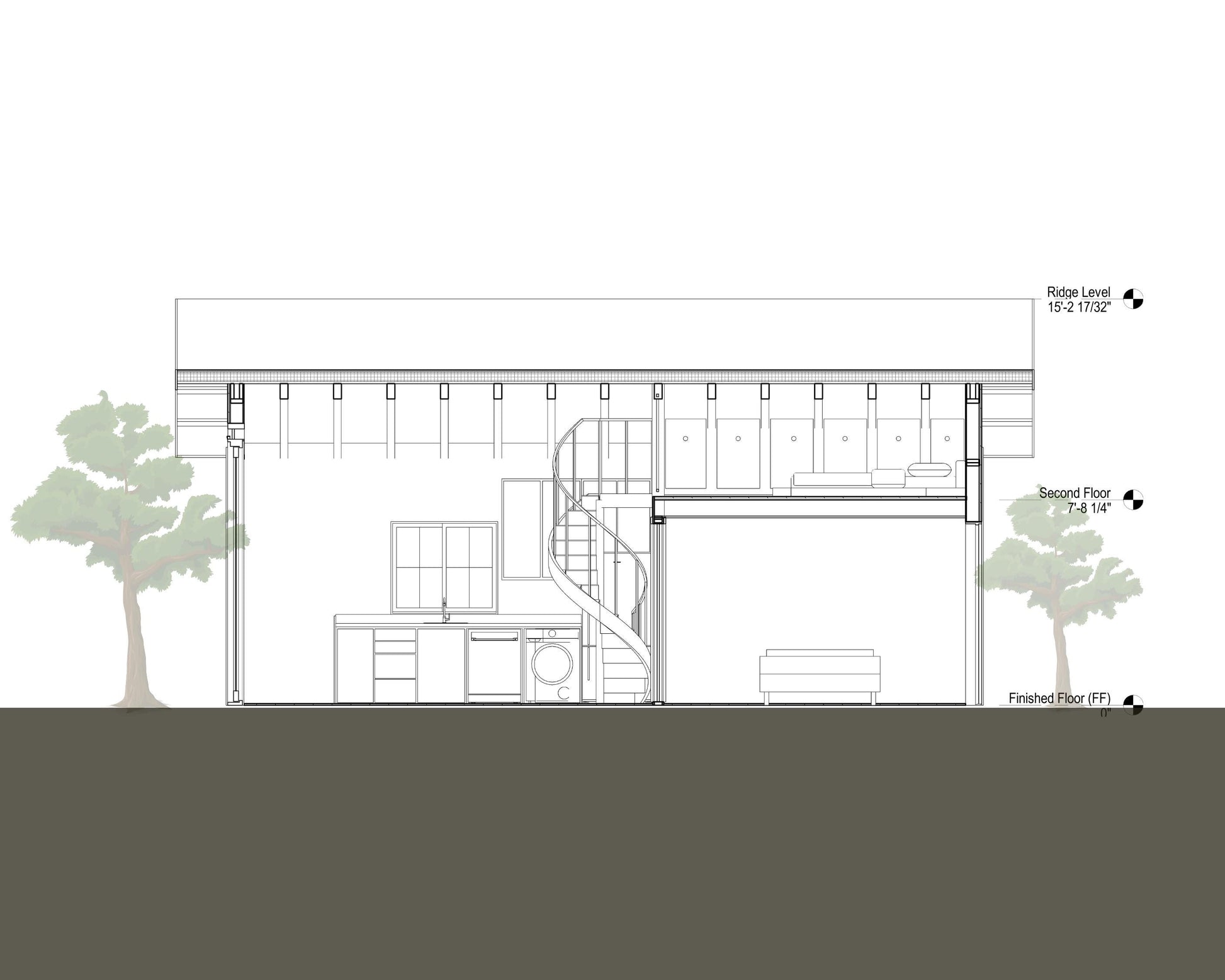

✔ Sections and elevations
✔ Fully dimensioned and numbered timber elements with cut lists
✔ 1 Interior & 1 exterior render image
💡 Perfect For
✔ Floating homes & marinas
✔ Minimalist lifestyle lovers
✔ Waterfront living projects
✔ Architects, builders & DIY enthusiasts
✔ Investors exploring floating housing concepts
Design-Ready / Build-Guided Package This project is offered as a Design-Ready and Build-Guided Package, prepared by an architect. All structural timber elements are fully dimensioned, numbered, and provided with detailed cut lists, clearly explaining the building system and assembly logic.
⚠️ Important Notes
•Plans are not site-specific.
•Local codes, zoning, and marina regulations may vary.
•A local architect or engineer should review and adapt the plans if required.
•This design is intended as a concept + architectural base, not stamped construction documents.
